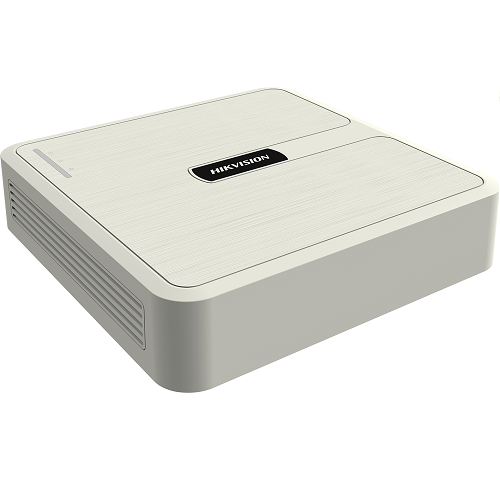

Dvr 4 canale Hiwatch 2MP HWD-5104. Este un dvr din gama LITE. Condarea este 264 iar rezolutia de inregistrare este de 2MP LITE. Accepta la intrare toate cele 5 tehnologii (AHD/CVI/TVI/CVBS si IP)
Product properties
Video/Audio input | |
Video compression | H.264+/H.264 |
Analog video input | 4-ch |
HDTVI input | 1080p25, 1080p30, 720p25, 720p30 |
AHD input | 1080p25, 1080p30, 720p25, 720p30 |
HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
CVBS input | Support |
IP video input | Up to 4-ch |
Audio compression | G.711u |
Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
Video/Audio output | |
HDMI/VGA output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
Main stream Frame rate | Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
Sub-stream Frame Rate | CIF/QVGA/QCIF@25fps (P)/30fps (N) |
Video bit rate | 32 Kbps to 4 Mbps |
Audio output | 1-ch, RCA (Linear, 1 KΩ) |
Audio bit rate | 64 Kbps |
Dual stream | Support |
Stream type | Video, Video & Audio |
Synchronous playback | 4-ch |
Network management | |
Remote connections | 32 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Hard disk | |
SATA Interface | 1 SATA interface |
Hard Disk Capacity | Up to 6 TB capacity for each disk |
External interface | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
USB interface | Rear panel: 2 × USB 2.0 |
General | |
Power supply | 12 VDC |
Consumption (without HDD) | ≤ 8 W |
Working temperature | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
Working humidity | 10% to 90% |
Dimensions (W × D × H) | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
Weight (without HDD) | ≤ 0.8 kg (1.8 lb) |
